Product description

---

Plate Link Conveyor Belt

Plate link belt is similar construction to the wire ring belt. The only difference is the eye link wires. For wire ring belt, the eye link wires are round wires, such as diameter 1.0, 1.2, 1.5mm, etc. But for plate link belt, the link is a flat plate, or called a small sheet.

Key words

Plate Link Conveyor Belt, Plate Belt, Plate Ring Belting, Plate Ring Belt

Description

Plate link belt has higher strength than wire ring belt, could carry much heavier load products than wire ring belt. And it can add one or two lines of chain in the middle of the belt to make the belt have even higher strength.

Key using industries

Food Processing, heat treatment

Key application

Baking, Freezing, Washing, etc.

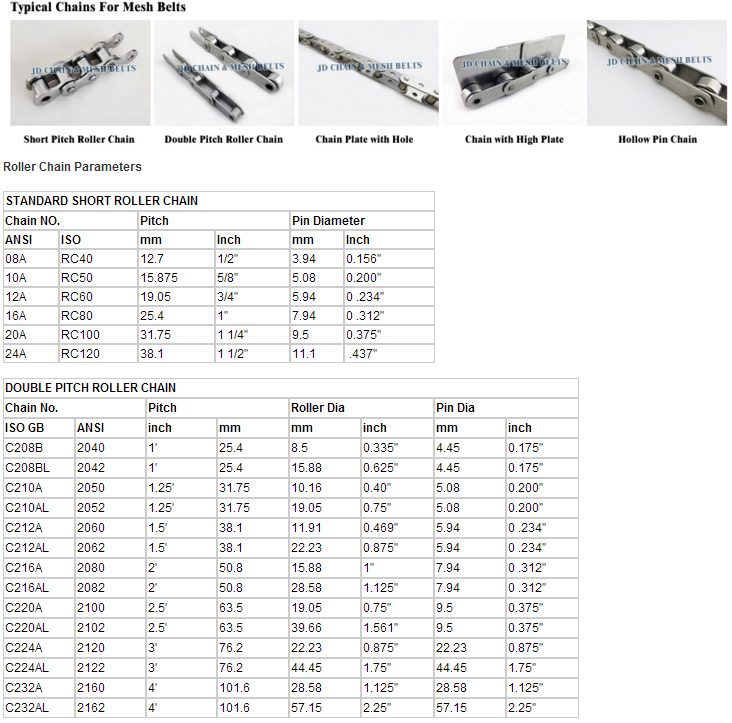

Roller Chain Selection

Chain is normally selected according to the strength and speed required. The most frequently used types of chain for metal mesh conveyors are roller chain, employed for most room-to-medium temperature applications, and for heavier loads and higher temperature.



























We supply  all kinds of different mode stainless steel roller chain. some of them are not inlcuding in the table for the limit spcae sake.

If you want to know more information, please contact us.
